Spring事务源码-JDBCTransactionManager

Posted on In Changyan:

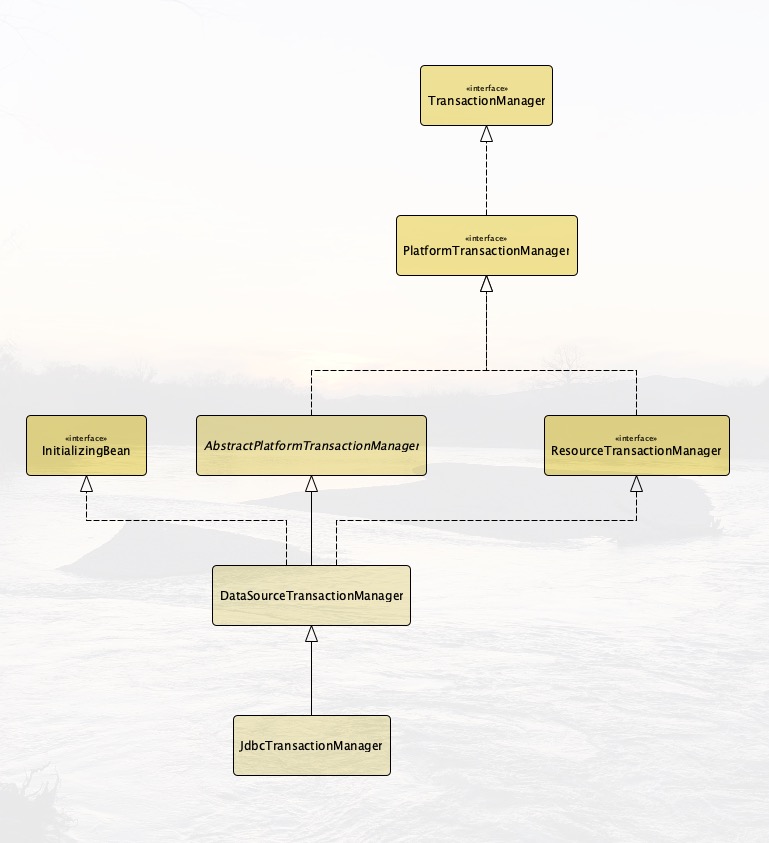

继承关系

https://iotxing-1253163150.cos.ap-shanghai.myqcloud.com/jdbc%E4%BA%8B%E5%8A%A1%E7%AE%A1%E7%90%86%E5%99%A8.jpg

作用

负责jdbc连接的事务相关，例如事务的开始，提交，回滚等内容

流程

  1. 在获取事务的时候，根据不同的事务传播级别，选择不同的处理
  2. 在开始新事务的时候，会记录事务的挂起点，然后在出现异常的时候，进行恢复

代码

因为JdbcTransactionManager是在AbstractPlatformTransactionManager基础上进行了一些扩展，所以大部分功能都是在AbstractPlatformTransactionManager实现的

构造函数

设定数据源，准备sql异常转换器

1
2
3
4
5
public DataSourceTransactionManager(DataSource dataSource) {
		this();
		setDataSource(dataSource);
		afterPropertiesSet();
	}

获取事务

根据事务的隔离级别，来获取到事务对象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
			throws TransactionException {

		// 是否指定了事务的相关属性，如果没有，使用默认属性
		TransactionDefinition def = (definition != null ? definition : TransactionDefinition.withDefaults());

		//获取到事务对象
		Object transaction = doGetTransaction();
		boolean debugEnabled = logger.isDebugEnabled();

		//如果当前已经有事务存在了，执行另一个逻辑
		if (isExistingTransaction(transaction)) {
			// Existing transaction found -> check propagation behavior to find out how to behave.
			return handleExistingTransaction(def, transaction, debugEnabled);
		}

		// Check definition settings for new transaction.
		if (def.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
			throw new InvalidTimeoutException("Invalid transaction timeout", def.getTimeout());
		}

		// 如果事务传播行为是PROPAGATION_MANDATORY并且当前没有事务存在，抛出异常
		if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
			throw new IllegalTransactionStateException(
					"No existing transaction found for transaction marked with propagation 'mandatory'");
		}
		else if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
				def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
				def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
			SuspendedResourcesHolder suspendedResources = suspend(null);
			if (debugEnabled) {
				logger.debug("Creating new transaction with name [" + def.getName() + "]: " + def);
			}
			try {
			//开始新的事务
				return startTransaction(def, transaction, debugEnabled, suspendedResources);
			}
			catch (RuntimeException | Error ex) {
				resume(null, suspendedResources);
				throw ex;
			}
		}
		else {
			//创建一个新的空事务出来，只是用来同步数据。如果当前事务的隔离级别不是默认，则进行提示
			// Create "empty" transaction: no actual transaction, but potentially synchronization.
			if (def.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
				logger.warn("Custom isolation level specified but no actual transaction initiated; " +
						"isolation level will effectively be ignored: " + def);
			}
			boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
			return prepareTransactionStatus(def, null, true, newSynchronization, debugEnabled, null);
		}
	}

startTransaction 开始新事务

1
2
3
4
5
6
7
8
9
10
11
12
private TransactionStatus startTransaction(TransactionDefinition definition, Object transaction,
			boolean debugEnabled, @Nullable SuspendedResourcesHolder suspendedResources) {

		boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);

		//创建一个新的事务出来
		DefaultTransactionStatus status = newTransactionStatus(
				definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
		doBegin(transaction, definition);
		prepareSynchronization(status, definition);
		return status;
	}

handleExistingTransaction

根据不同的事务隔离级别，采取不同的处理行为

  • PROPAGATION_NEVER：抛出异常，因为PROPAGATION_NEVER定义不支持存在的事务
  • PROPAGATION_NOT_SUPPORTED：不支持事务，如果当前存在事务，则把当前事务挂起，然后以非事务的模式执行
  • PROPAGATION_REQUIRES_NEW：创建一个新的事务，如果当前已经有存在的，则挂起当前存在的事务
  • PROPAGATION_NESTED：如果当前存在事务，则记录一个savepoint，然后开启一个嵌套事务，如果嵌套事务出现问题，回滚到savepoint，然后继续外层事务。如果当前没有事务存在，则直接开启一个新事务
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
private TransactionStatus handleExistingTransaction(
			TransactionDefinition definition, Object transaction, boolean debugEnabled)
			throws TransactionException {

		if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NEVER) {
			throw new IllegalTransactionStateException(
					"Existing transaction found for transaction marked with propagation 'never'");
		}

		if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NOT_SUPPORTED) {
			if (debugEnabled) {
				logger.debug("Suspending current transaction");
			}
			Object suspendedResources = suspend(transaction);
			boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
			return prepareTransactionStatus(
					definition, null, false, newSynchronization, debugEnabled, suspendedResources);
		}

		if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {
			if (debugEnabled) {
				logger.debug("Suspending current transaction, creating new transaction with name [" +
						definition.getName() + "]");
			}
			SuspendedResourcesHolder suspendedResources = suspend(transaction);
			try {
				return startTransaction(definition, transaction, debugEnabled, suspendedResources);
			}
			catch (RuntimeException | Error beginEx) {
				resumeAfterBeginException(transaction, suspendedResources, beginEx);
				throw beginEx;
			}
		}

		if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
			if (!isNestedTransactionAllowed()) {
				throw new NestedTransactionNotSupportedException(
						"Transaction manager does not allow nested transactions by default - " +
						"specify 'nestedTransactionAllowed' property with value 'true'");
			}
			if (debugEnabled) {
				logger.debug("Creating nested transaction with name [" + definition.getName() + "]");
			}
			if (useSavepointForNestedTransaction()) {
				// Create savepoint within existing Spring-managed transaction,
				// through the SavepointManager API implemented by TransactionStatus.
				// Usually uses JDBC 3.0 savepoints. Never activates Spring synchronization.
				DefaultTransactionStatus status =
						prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);
				status.createAndHoldSavepoint();
				return status;
			}
			else {
				// Nested transaction through nested begin and commit/rollback calls.
				// Usually only for JTA: Spring synchronization might get activated here
				// in case of a pre-existing JTA transaction.
				return startTransaction(definition, transaction, debugEnabled, null);
			}
		}

		// Assumably PROPAGATION_SUPPORTS or PROPAGATION_REQUIRED.
		if (debugEnabled) {
			logger.debug("Participating in existing transaction");
		}
		if (isValidateExistingTransaction()) {
			if (definition.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT) {
				Integer currentIsolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
				if (currentIsolationLevel == null || currentIsolationLevel != definition.getIsolationLevel()) {
					Constants isoConstants = DefaultTransactionDefinition.constants;
					throw new IllegalTransactionStateException("Participating transaction with definition [" +
							definition + "] specifies isolation level which is incompatible with existing transaction: " +
							(currentIsolationLevel != null ?
									isoConstants.toCode(currentIsolationLevel, DefaultTransactionDefinition.PREFIX_ISOLATION) :
									"(unknown)"));
				}
			}
			if (!definition.isReadOnly()) {
				if (TransactionSynchronizationManager.isCurrentTransactionReadOnly()) {
					throw new IllegalTransactionStateException("Participating transaction with definition [" +
							definition + "] is not marked as read-only but existing transaction is");
				}
			}
		}
		boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
		return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
	}

doBegin 开始事务内部的执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
protected void doBegin(Object transaction, TransactionDefinition definition) {
		DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
		Connection con = null;

		try {
			if (!txObject.hasConnectionHolder() ||
					txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
				Connection newCon = obtainDataSource().getConnection();
				if (logger.isDebugEnabled()) {
					logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");
				}
				txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
			}

			txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
			con = txObject.getConnectionHolder().getConnection();

			Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
			txObject.setPreviousIsolationLevel(previousIsolationLevel);
			txObject.setReadOnly(definition.isReadOnly());

			// Switch to manual commit if necessary. This is very expensive in some JDBC drivers,
			// so we don't want to do it unnecessarily (for example if we've explicitly
			// configured the connection pool to set it already).
			if (con.getAutoCommit()) {
				txObject.setMustRestoreAutoCommit(true);
				if (logger.isDebugEnabled()) {
					logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
				}
				con.setAutoCommit(false);
			}

			prepareTransactionalConnection(con, definition);
			txObject.getConnectionHolder().setTransactionActive(true);

			int timeout = determineTimeout(definition);
			if (timeout != TransactionDefinition.TIMEOUT_DEFAULT) {
				txObject.getConnectionHolder().setTimeoutInSeconds(timeout);
			}

			// Bind the connection holder to the thread.
			if (txObject.isNewConnectionHolder()) {
				TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder());
			}
		}

		catch (Throwable ex) {
			if (txObject.isNewConnectionHolder()) {
				DataSourceUtils.releaseConnection(con, obtainDataSource());
				txObject.setConnectionHolder(null, false);
			}
			throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", ex);
		}
	}

doGetTransaction

获取到事务的对象，

1
2
3
4
5
6
7
8
protected Object doGetTransaction() {
		DataSourceTransactionObject txObject = new DataSourceTransactionObject();
		txObject.setSavepointAllowed(isNestedTransactionAllowed());
		ConnectionHolder conHolder =
				(ConnectionHolder) TransactionSynchronizationManager.getResource(obtainDataSource());
		txObject.setConnectionHolder(conHolder, false);
		return txObject;
	}

resumeAfterBeginException

如果里面的事务出现了问题，则恢复外面的事务

1
2
3
4
5
6
7
8
9
10
11
12
private void resumeAfterBeginException(
			Object transaction, @Nullable SuspendedResourcesHolder suspendedResources, Throwable beginEx) {

		try {
			resume(transaction, suspendedResources);
		}
		catch (RuntimeException | Error resumeEx) {
			String exMessage = "Inner transaction begin exception overridden by outer transaction resume exception";
			logger.error(exMessage, beginEx);
			throw resumeEx;
		}
	}

resume

开始事务出现问题的时候，恢复数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
protected final void resume(@Nullable Object transaction, @Nullable SuspendedResourcesHolder resourcesHolder)
			throws TransactionException {

		if (resourcesHolder != null) {
			Object suspendedResources = resourcesHolder.suspendedResources;
			if (suspendedResources != null) {
				doResume(transaction, suspendedResources);
			}
			List<TransactionSynchronization> suspendedSynchronizations = resourcesHolder.suspendedSynchronizations;
			if (suspendedSynchronizations != null) {
				TransactionSynchronizationManager.setActualTransactionActive(resourcesHolder.wasActive);
				TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(resourcesHolder.isolationLevel);
				TransactionSynchronizationManager.setCurrentTransactionReadOnly(resourcesHolder.readOnly);
				TransactionSynchronizationManager.setCurrentTransactionName(resourcesHolder.name);
				doResumeSynchronization(suspendedSynchronizations);
			}
		}
	}

commit 提交事务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public final void commit(TransactionStatus status) throws TransactionException {
		if (status.isCompleted()) {
			throw new IllegalTransactionStateException(
					"Transaction is already completed - do not call commit or rollback more than once per transaction");
		}

		DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
		if (defStatus.isLocalRollbackOnly()) {
			if (defStatus.isDebug()) {
				logger.debug("Transactional code has requested rollback");
			}
			processRollback(defStatus, false);
			return;
		}

		if (!shouldCommitOnGlobalRollbackOnly() && defStatus.isGlobalRollbackOnly()) {
			if (defStatus.isDebug()) {
				logger.debug("Global transaction is marked as rollback-only but transactional code requested commit");
			}
			processRollback(defStatus, true);
			return;
		}

		processCommit(defStatus);
	}

当出现问题的时候，会进行rollback。这些都是会调用具体连接提供的能力。

具体的内容可以看DataSourceTransManager文件
